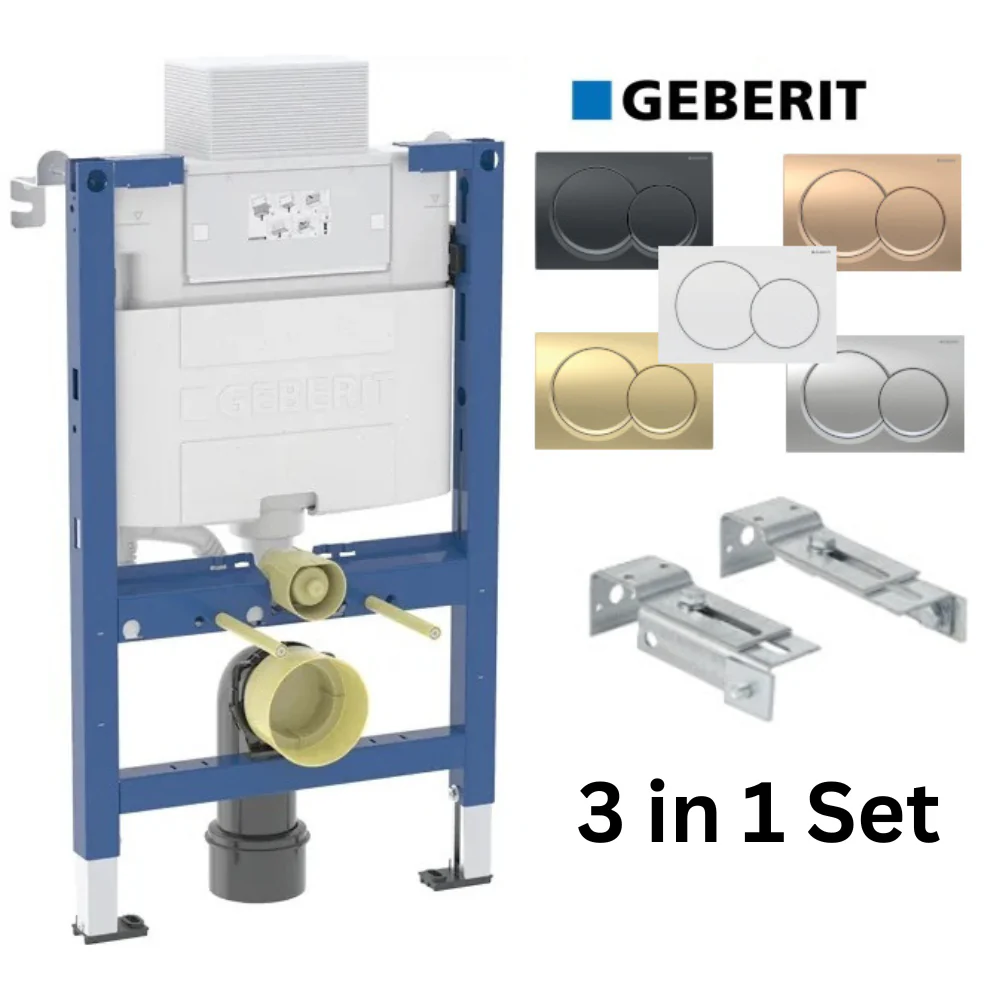

Geberit Duofix Alpha Wc Frame 820mm Concealed Cistern, Oval Plate Brackets and Acoustic Mat 458.033.00.2

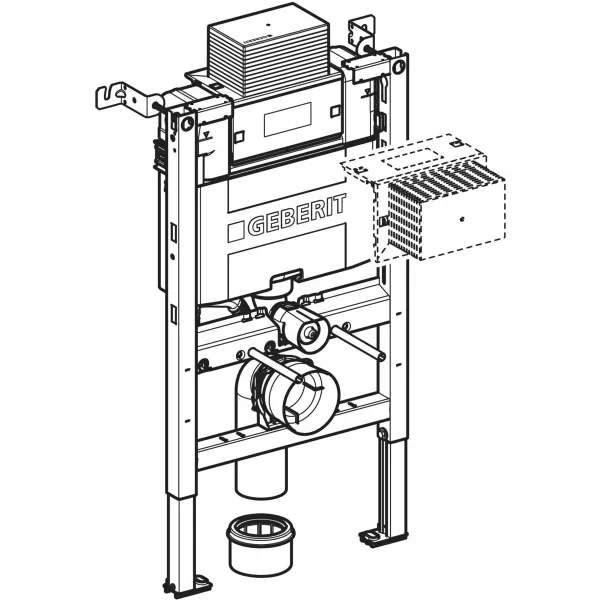

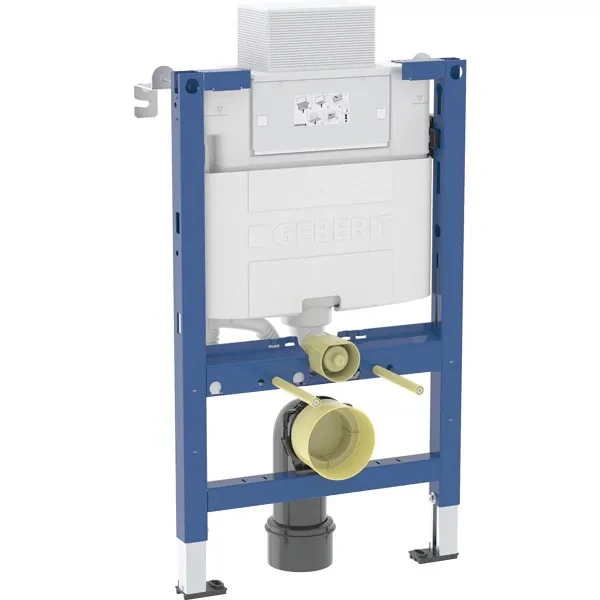

Geberit Duofix Alpha Wc Frame 820mm Concealed Cistern with Brackets

Technical data

·       Flow pressure: 0.1-10 bar

·       Operating temperature, water max: 25 °C

·       Flush volume, factory setting: 5.8 / 3 l

·       Flush volume small, adjustment range: 3–4 l

·       Acoustic mat included



Application purposes

·       For metal and woods frame walls

·       For installation in part or room height prewalls

·       For installation in room height partition walls

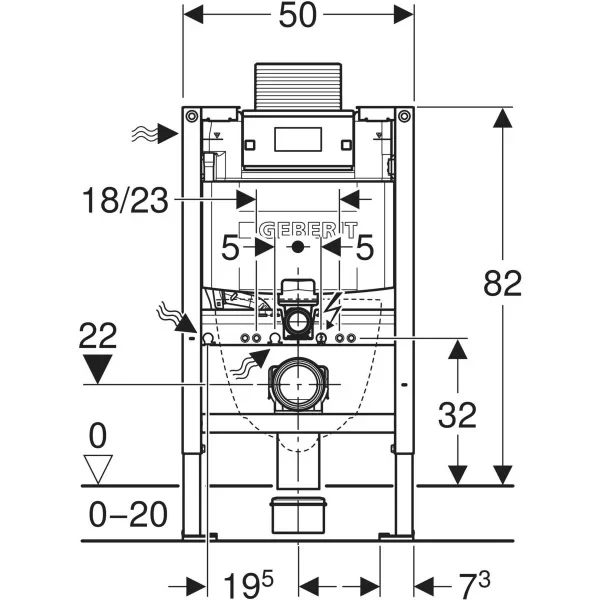

·       For floor construction 0-20cm

·       For wall hung wc



Characteristics

·       Statically self-supporting frame, protected against corrosion with powder coating

·       Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

·       Alternative fastening point for wall anchors

·       Foot plates made of plastic

·       Foot plate depth suitable for installation in U-profiles UW 50

·       Frame with ø 9 mm drilling holes for fastening in wood frame construction

·       Galvanised leg supports protected against corrosion

·       Connection bend can be mounted without tools

·       Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·       Cistern fulfils standard requirements in accordance with EN 14055, Class II

·       For front and top actuation, suitable for dual flush

·       Immediate post flush possible with factory setting

·       Water supply connection on the left

·       Protection box for service opening, can be cut to length, protects against moisture and dirt

·       With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

·       Fastening option for electrical connection



Scope of delivery

·       Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

·       Protection box for service opening

·       2 wall anchors

·       Connection set for WC, ø 90 mm

·       Connection bend 90° made of PE-HD, ø 90 mm

·       Adaptor socket made of PE-HD, ø 90 / 110 mm

·       Fastening and protection material

·       Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm

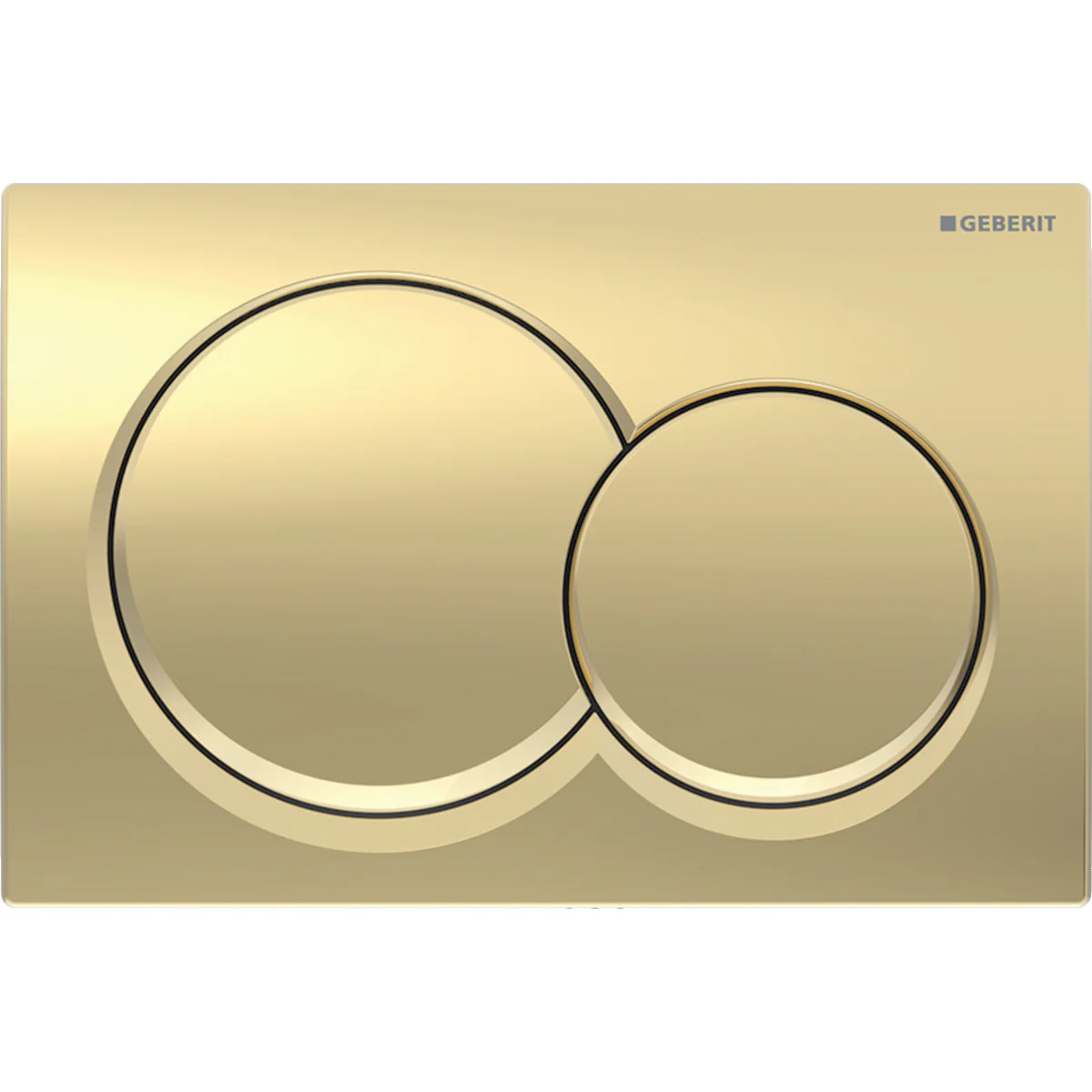

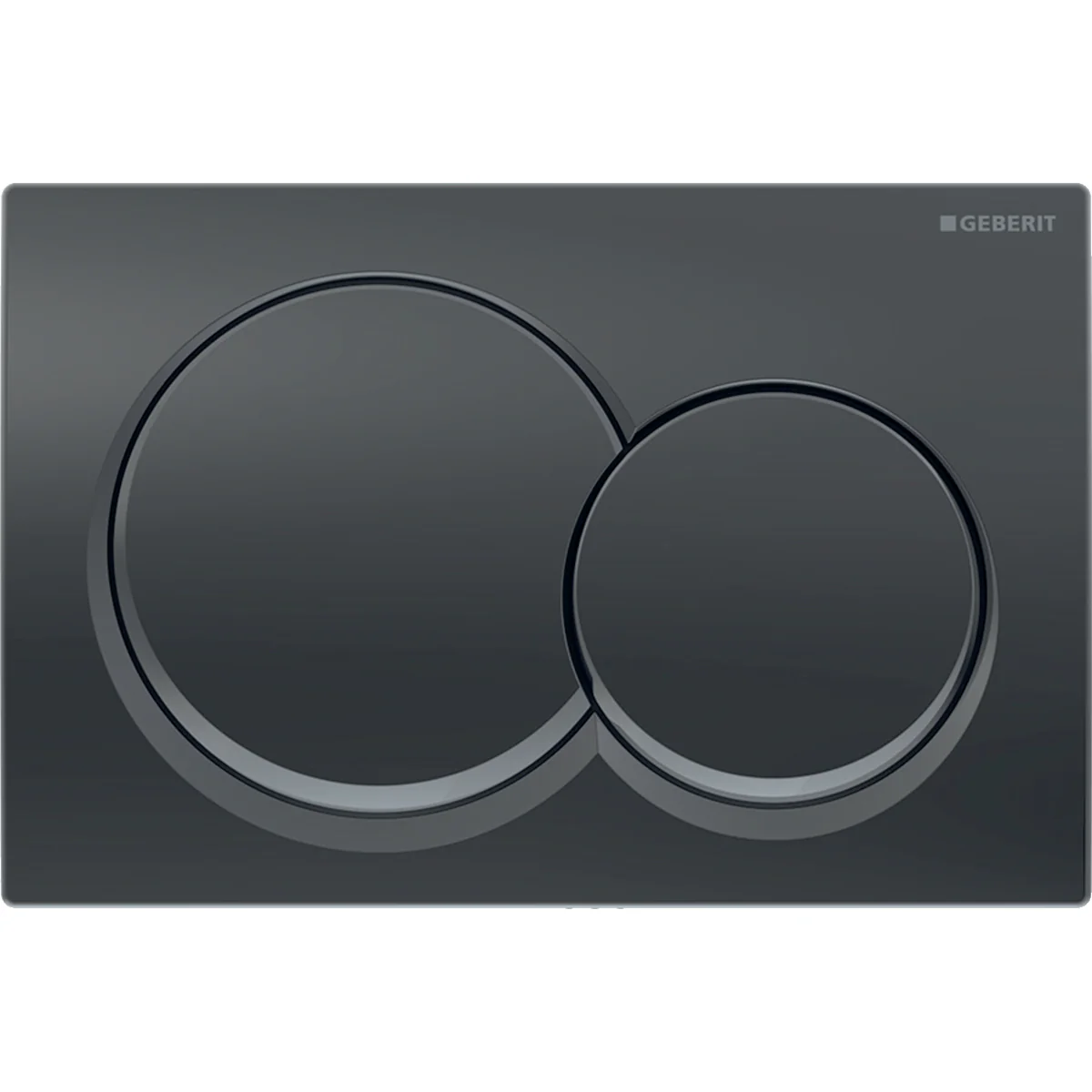

Geberit Alpha flush plate

·       Actuation force max – 20 N

·       Button shape – round

·       For flush actuation with Alpha concealed cisterns ONLY

·       Top/front actuation

·       2 actuator rods

·       Fastening material
