Tece TECEbase - concealed toilet frame with Base cistern

Product Description:

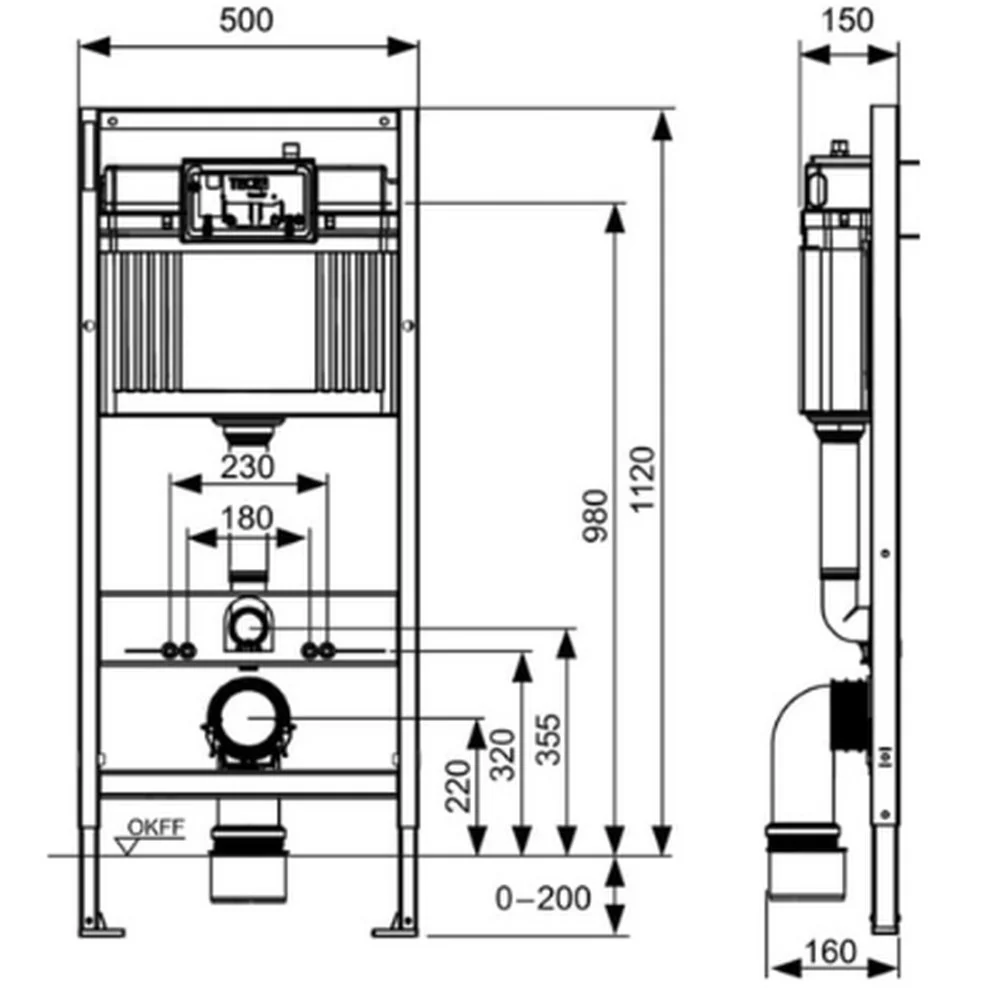

The TECEbase concealed WC frame with Base cistern (Model 9400407) is a practical and durable choice for modern bathroom installations. Designed with a compact 1120 mm mounting height, it's suitable for installation in front of solid or lightweight partition walls.

The Base cistern is pre-assembled for convenience, with front actuation and a 10-liter capacity. It offers factory-set dual-flush volumes of 3/6 liters, which can be adjusted to 3/4.5, 3/7.5, or 3/9 liters depending on user preference. A three-way shut-off valve with integrated flushing function provides reliable performance, and the unit is fully compatible with TECE flush plates.

The self-supporting steel frame is powder-coated for corrosion resistance and comes complete with adjustable wall brackets (model 9380300), a DN 90 drain bend with DN 90/100 adapter, and all required installation accessories.

Key Features:

• Mounting Height: 1120 mm – suitable for most wall types

• Cistern Capacity: 10 liters, with adjustable dual-flush settings

• Actuation: Front operation for ease of use

• Frame: Self-supporting, powder-coated steel structure

• Installation Type: For solid walls or lightweight partition walls

• Included Accessories: Wall brackets (9380300), DN 90 drain bend with DN 90/100 adapter, and mounting hardware

This concealed installation set provides a compact and dependable foundation for modern wall-hung toilet setups.
